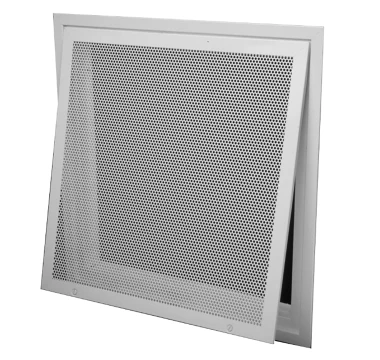

12PFF — Perforated Diffuser Face with Filter Frame

  • For use in all types of air-conditioning systems.

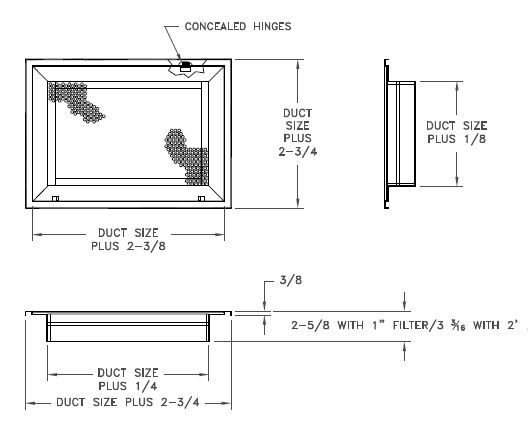

  • Features a perforated face, hinged parallel to the long dimension.
  • Concealed hinge standard.
  • Filter frame holds one-inch filter
  • Cam-lock fastening standard, located on side opposite of hinge.
  • Number of cam locks varies with size of frame.
  • Use with AL10PF plaster frame for surface-mount applications
  • Steel. Bright white finish is standard
  • Also available in T-bar option. 12PFF 20 20 WHT LAY IN NSH
