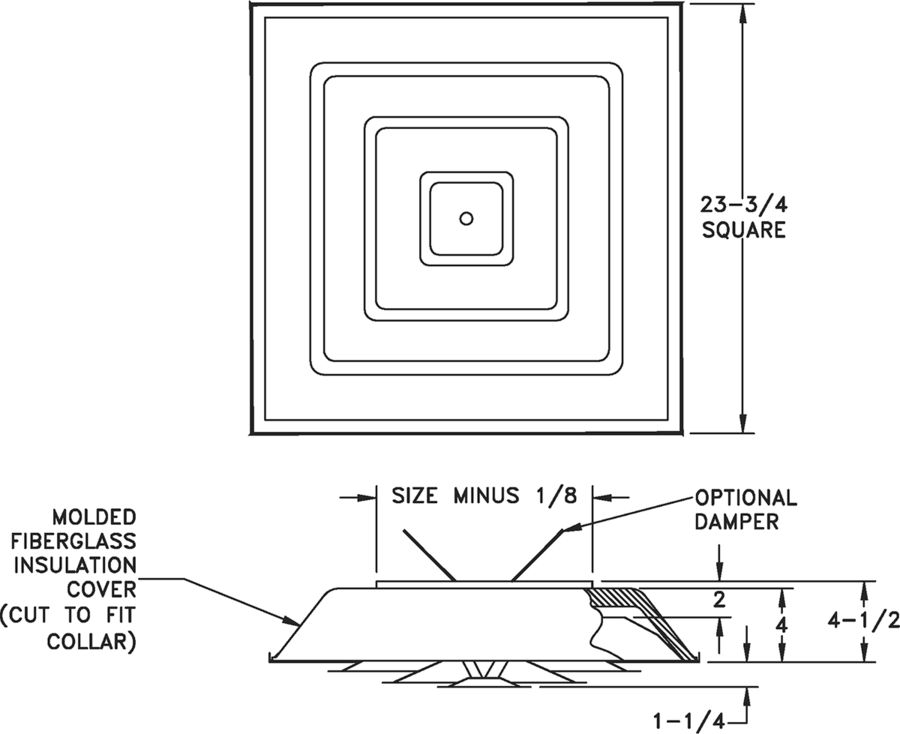

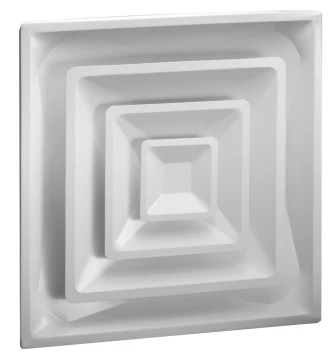

1570 — Insulated Step-Down Ceiling Diffusers

  • Provides high air volume delivery in a four-way air diffusion pattern.
  • Four-cone design with fixed core and formed back panel.

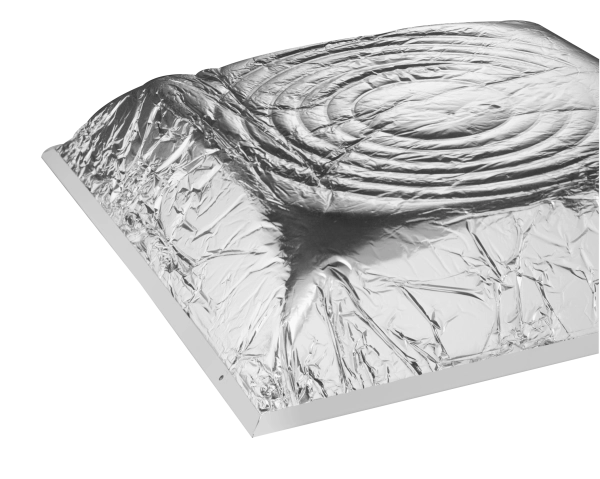

  • Molded fiberglass back meets or exceeds the following:
    Test and rating reports available upon written request.
    • ASTM E84 Flame and Smoke Test
    • UL181 Erosion and Impact Test
    • "R" value of 6
    • RR7811 Approval for Los Angeles
  • Accepts unique 2" high snap-in collar (Model 1565) with use of 1565PP push pins.
  • Use with AL10PF plaster frame for surface-mount applications
  • All-steel construction. Formed steel back panel.
  • Bright White finish standard.
