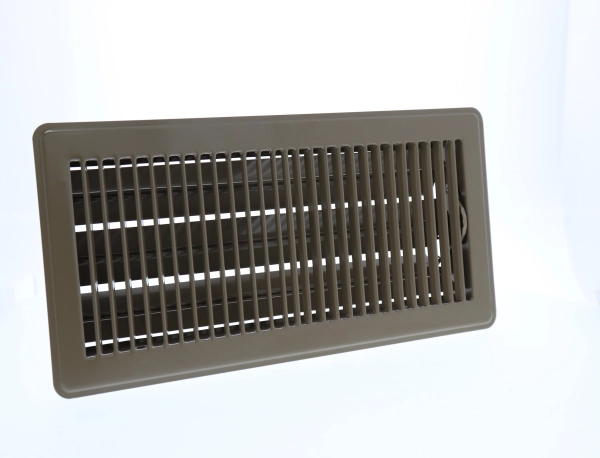

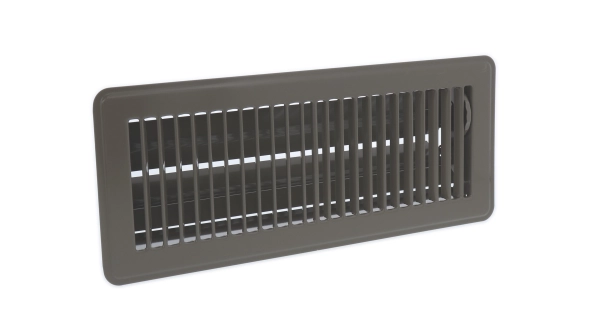

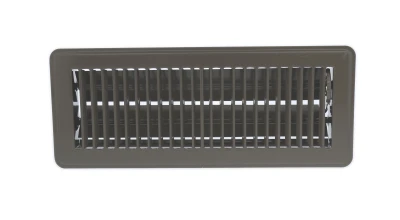

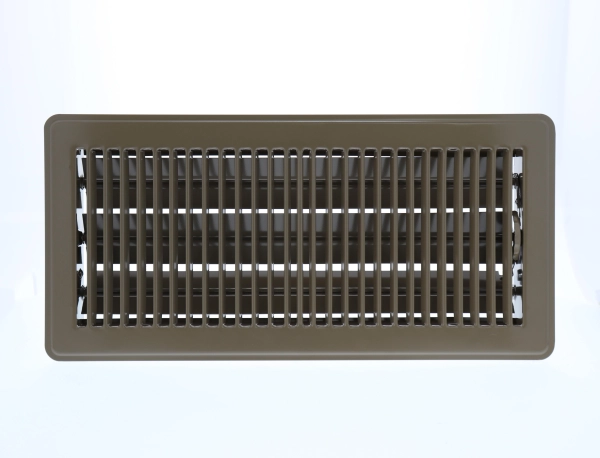

800 — Stamped Floor Register
- Stamped, straight-blade floor register
- Toe-operated multi-louver damper
- Heavy gauge, stamped face
- Steel
- Brown finish standard

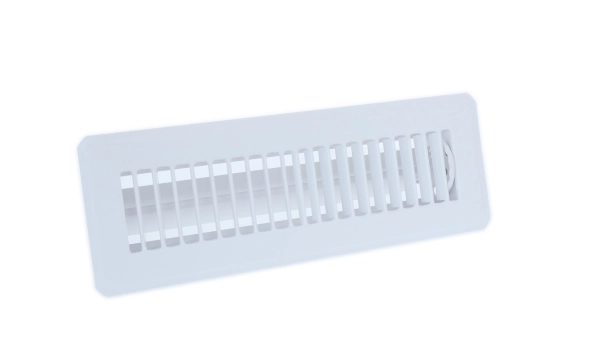

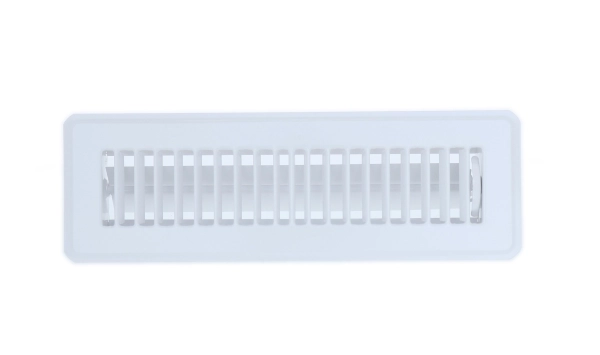

- Bright White finish optional.
How to Specify
Provide the following information:
- Model number
- Length
- Width
- Finish

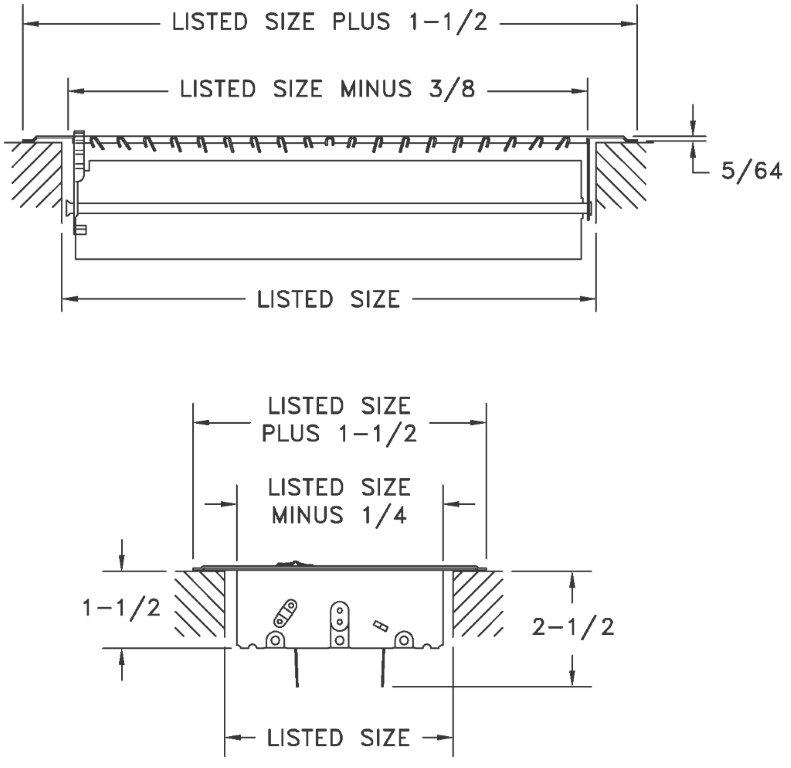

Available Sizes (in inches)
|
Size |
Free Area Sq. Inches |
|---|---|
| 2 x 10 | 15 |
| 2 x 12 | 17 |
| 2 x 14 | 20 |
| 4 x 8 | 22 |
| 4 x 10 | 27 |
| 4 x 12 | 32 |
| 4 x 14 | 37 |
| 6 x 10 | 39 |
| 6 x 12 | 48 |
| 6 x 14 | 56 |
Product Images
