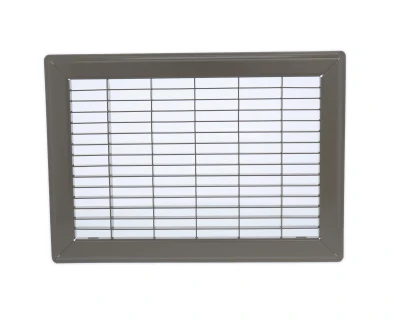

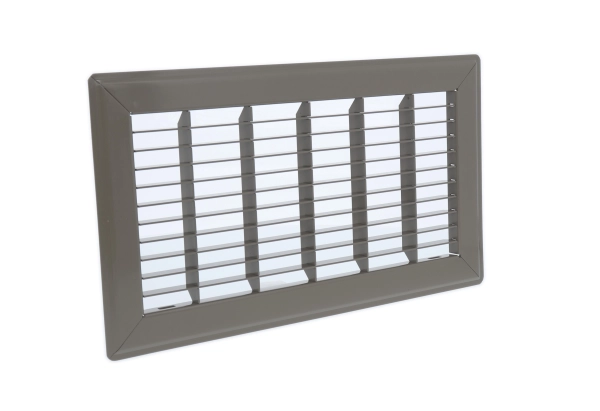

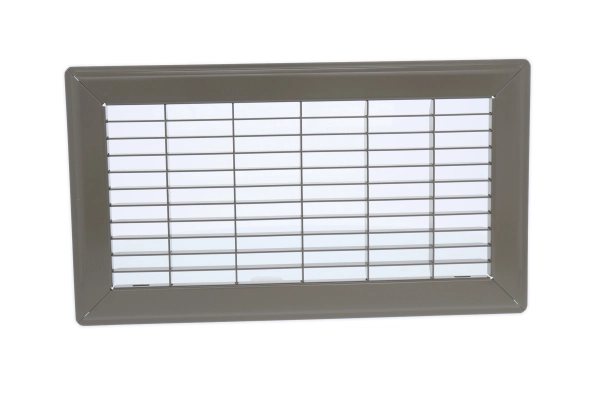

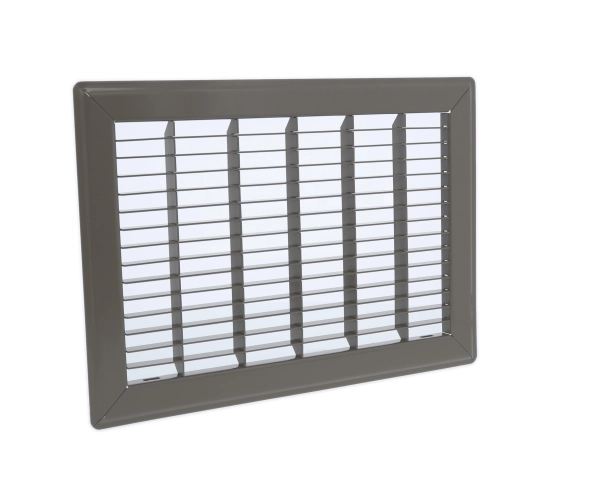

825 — Return Floor Grille
- Heavy-gauge bar return
- Heavy-gauge interlocking bars on 1/2” and 2” centers
- Steel
- Brown finish standard
- Bright White finish optional
How to Specify
Provide the following information:
- Model number
- Length
- Width
- Finish

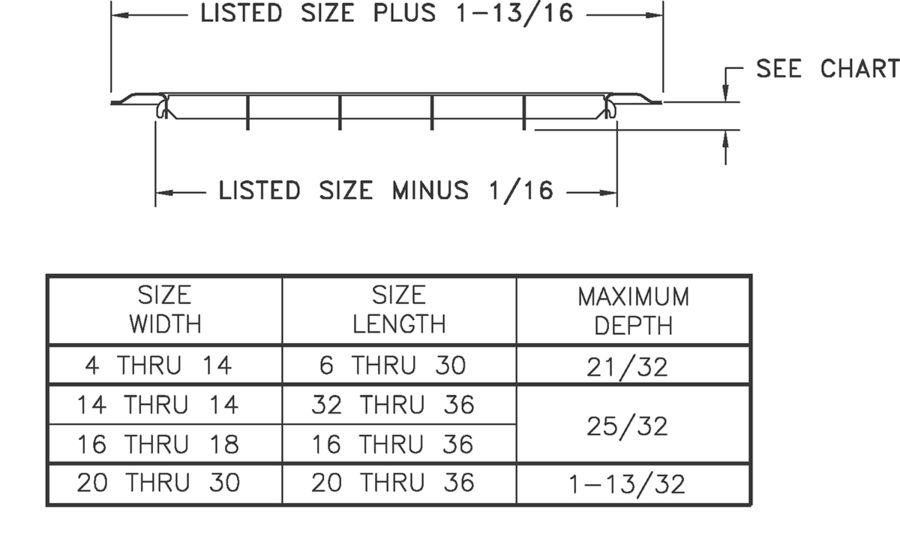

Avaible sizes (in inches)
| Width | Length | Maximum Depth |
|---|---|---|
| 4 THRU 14 | 6 THRU 30 | 21/32 |
| 14 THRU 14 | 32 THRU 36 | 25/32 |
| 16 THRU 18 | 16 THRU 36 | 25/32 |
| 20 THRU 30 | 20 THRU 36 | 1 13/32 |
Product Images
