AL2000 — Linear Slot Diffuser
- Extruded alumninum construction
- Three slot types: 50 (1/2" slot), 75 (3/4" slot), 10 (1" slot)
- One to eight slots wide for air volume of 10-350 cfm per foot
- Adjustable pattern controller
- Three margin styles: B, E, F
- 12" minimum length.
- Maximum one-piece length 72", lengths over 72' made in multiple units with pin splices for even continuous lengths (1/8" increments). 999" maximum continuous length.
- Available as diffuser-only or diffuser with pattern controller.

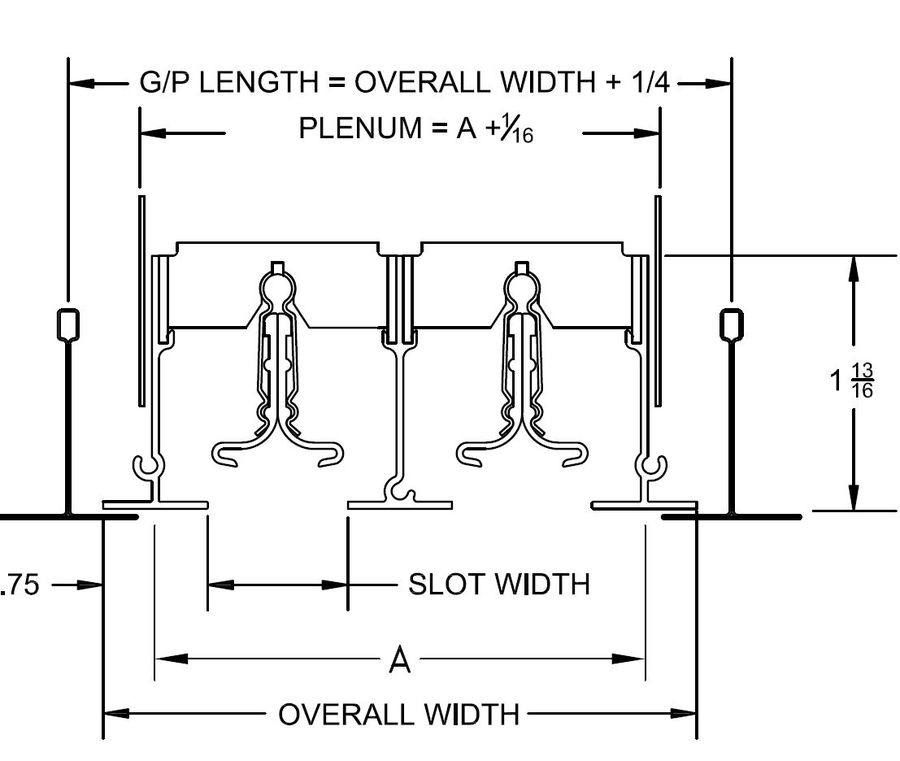

B0 – T-Bar Lay-in - Diffuser Only
Duct Width: A + 1/16
Overall Width: A + 7/8
Please see Submittal Drawing for details
T-Bar Application
Order the length shown below:
| 2'x2' | 2'x4' | |
|---|---|---|
| with End Caps | 23 3/4" | 47 3/4" |

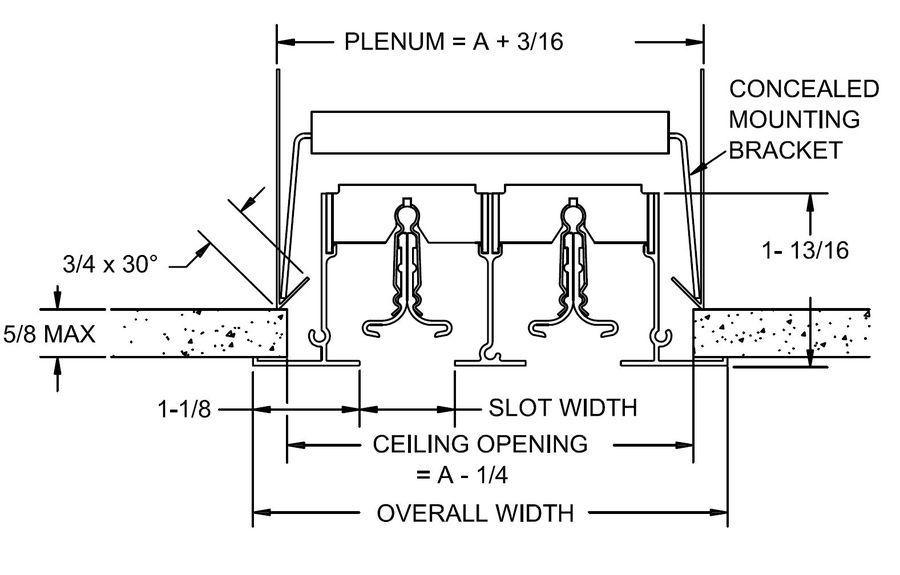

E1 – with Hanger Bracket
Overall Width: A + 3/4
Please see Submittal Drawing for details

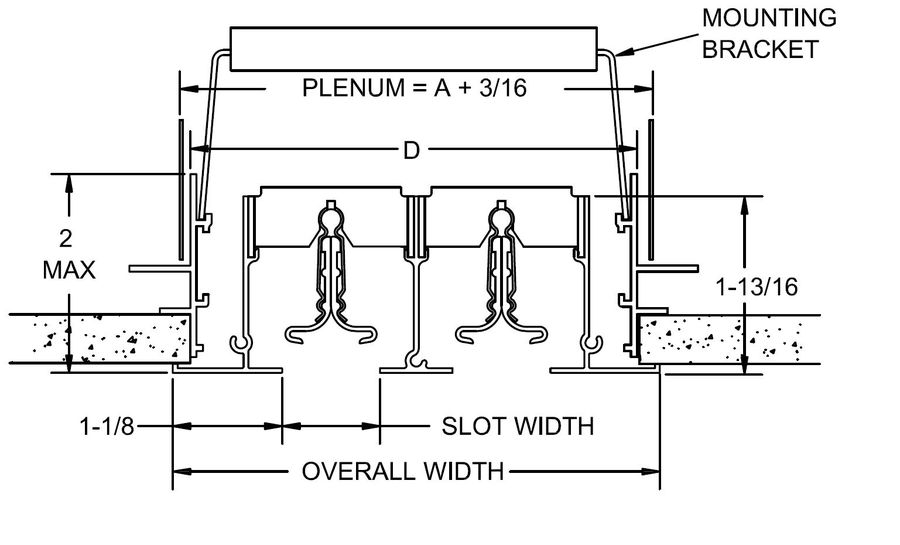

E2 – Mounting Frame
Overall Width: A + 3/4
Please see Submittal Drawing for details

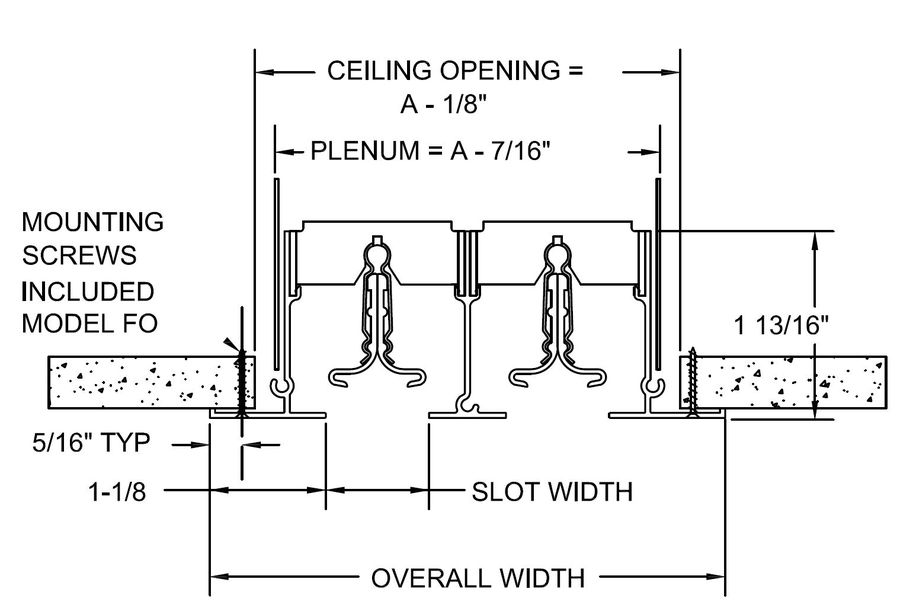

E0 – Diffuser Only
Duct Width: A + 7/16
Overall Width: A + 7/8
Please see Submittal Drawing for details
F0 - Screw Holes in Margin
Duct Width: A + 7/16
Overall Width: A + 7/8
Please see Submittal Drawing for details
Duct Width: A + 7/16
Overall Width: A + 7/8
- 90-degree mitered corners are available as factory-fabricated section. Precise factory cutting and assembly reduces field fabrication time and assures proper fit. Corner sections are furnished and blanked off. Corner sections butt to adjacent straight sections, which are spliced together with aligning keys.
- Mitered corners are furnished in mounting style E2. When viewed from the room side, the mitered corner section appears identical to the butting straight sections.
- Plaster frame mitered corners can be specified with the outlet mitered corner.
NOTE: DRAWING REQUIRED when ordering linear or slot diffusers with mitered corners.
How to Order
S [1] [2] [3] [4] [5] [6] [7]
[1] Type:
- 50 - 1/2" slot
- 75 - 3/4" slot
- 10 - 1" slot
[2] Number of Slots:
- 01-08 slots
[3] Mounting Style:
- B0 - T-Bar Lay-in -Diffuser Only
- E0 - Diffuser Only
- E1 - Hanger Bracket
- E2 - Standard Mounting Frame
- F0 - Screw holes in margin
[4] Milter Type:
- C - Ceiling
- SI - Sidewall Inside
- SO - Sidewall Outside
[5] MC
[6] 90
[7] Finish
- CLR - Clear Anodized
- WHT - Bright White
