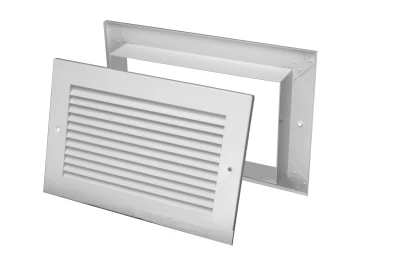

AL700/700 — Nonvision Door Grille

  • Non-vision Door Grilles are designed for installation in doors, walls or partitions where constant air passage is required.
  • Closely spaced fins are on 1/2" centers for greater free areas.

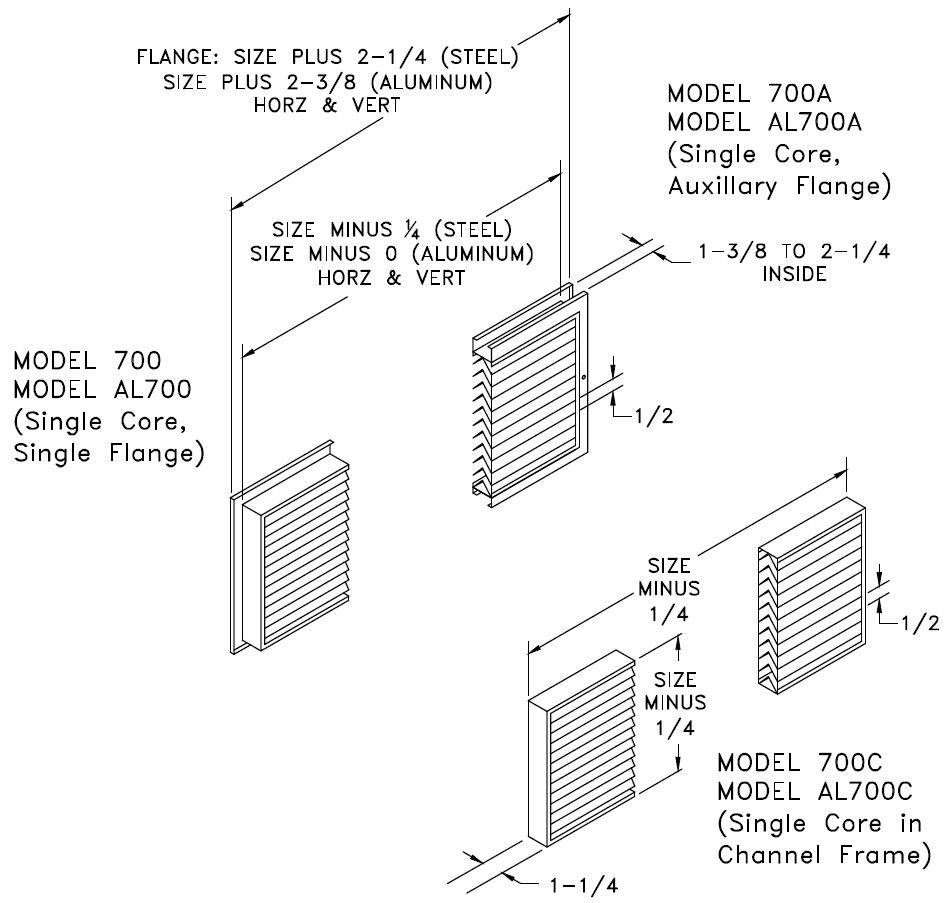

  • Available in three models.
    • Model 700 has a 1-1/4" border. Model AL700 has a 1-1/2” border.
    • 700A includes core, frame and auxiliary frame that adjusts to fit any thickness from 1 3/8" to 2 1/4"
    • 700C includes core and channel only.
  • Steel or aluminum
  • Steel(700/700A/700C) or aluminum (AL700/AL700A/AL700C)
  • Bright White finish standard for steel, clear anodized or bright white available for aluminum version
