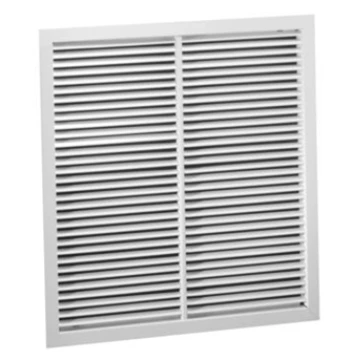

S90H Lay-In — Stationary Bar Return Grille Steel

  • Blades are spaced on 3/4” centers and set at a 35° angle to restrict vision.
  • Countersunk mounting holes. Mullion spacing not to exceed 8”.
  • Mount flush with T-Bar ceilings
  • Steel
  • Bright White finish standard
  • Use with AL10PF plaster frame for surface-mount applications
  • Available sizes (inches)
    • 22 x 22 (overall 23 3/4" x 23 3/4" ) for 24 x 24 openings
    • 46 x 22 (overall 47 3/4" x 23 3/4") for 48 x 24 openings
