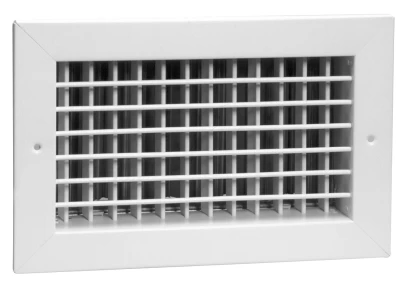

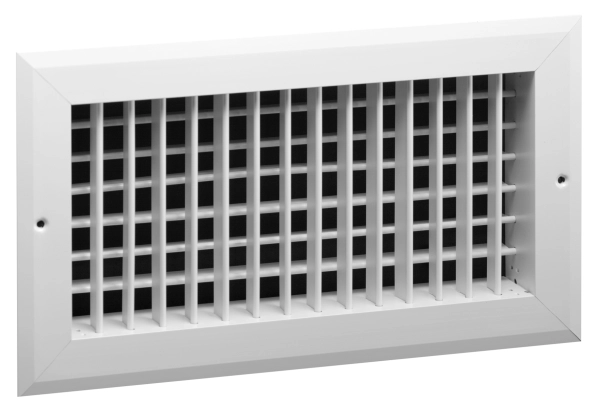

ALHV or ALVH — Supply Grille

  • Model ALHV or ALVH is a supply grille.
  • Horizontal front blades for ALHV and vertical front blades for ALVH
  • Double deflection.
  • Adjustable blades. 3/4" blade spacing.
  • Extruded aluminum.
  • Available in Clear anodized or Bright white finish
  • Fractional sizes available.
  • Flat frame option standard, stocked as current
  • Damper depth is slightly greater (1/4”), where applicable
  • Also available in special order Z-Frame

      Add a “Z” to the beginning of the model number

      H means horizontal blades V means vertical blades
